248-97-144-334-1000
MPN: 248-97-144-334-1000
M8

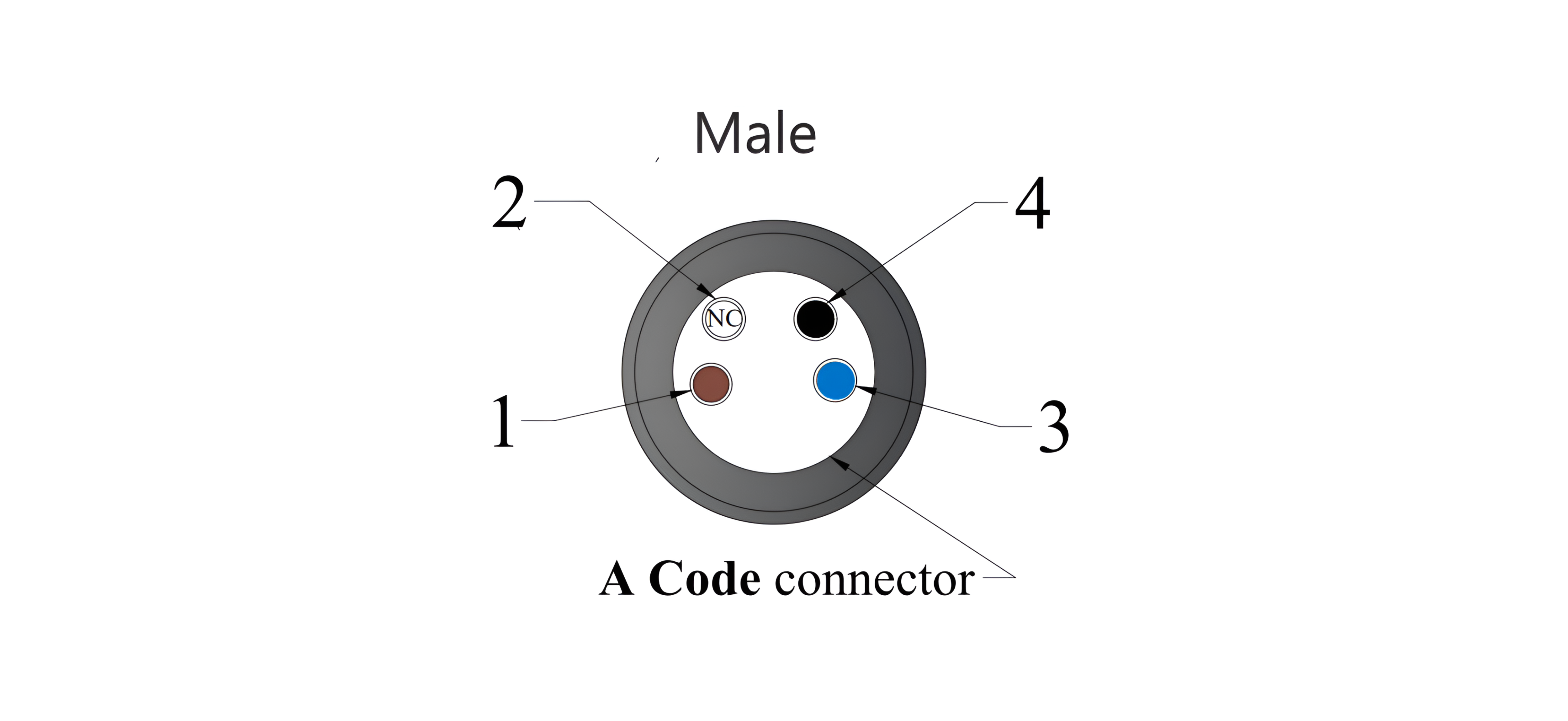

A-Code
IP67,IP68

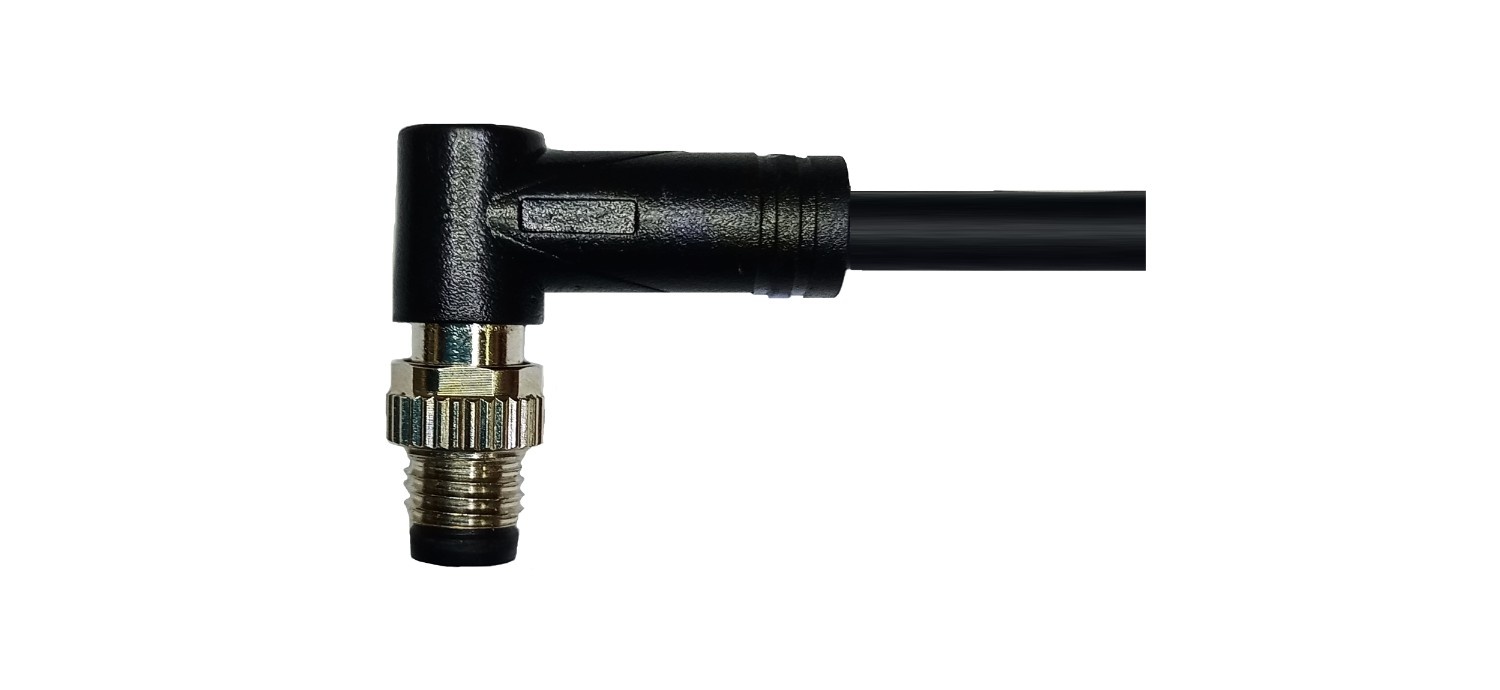

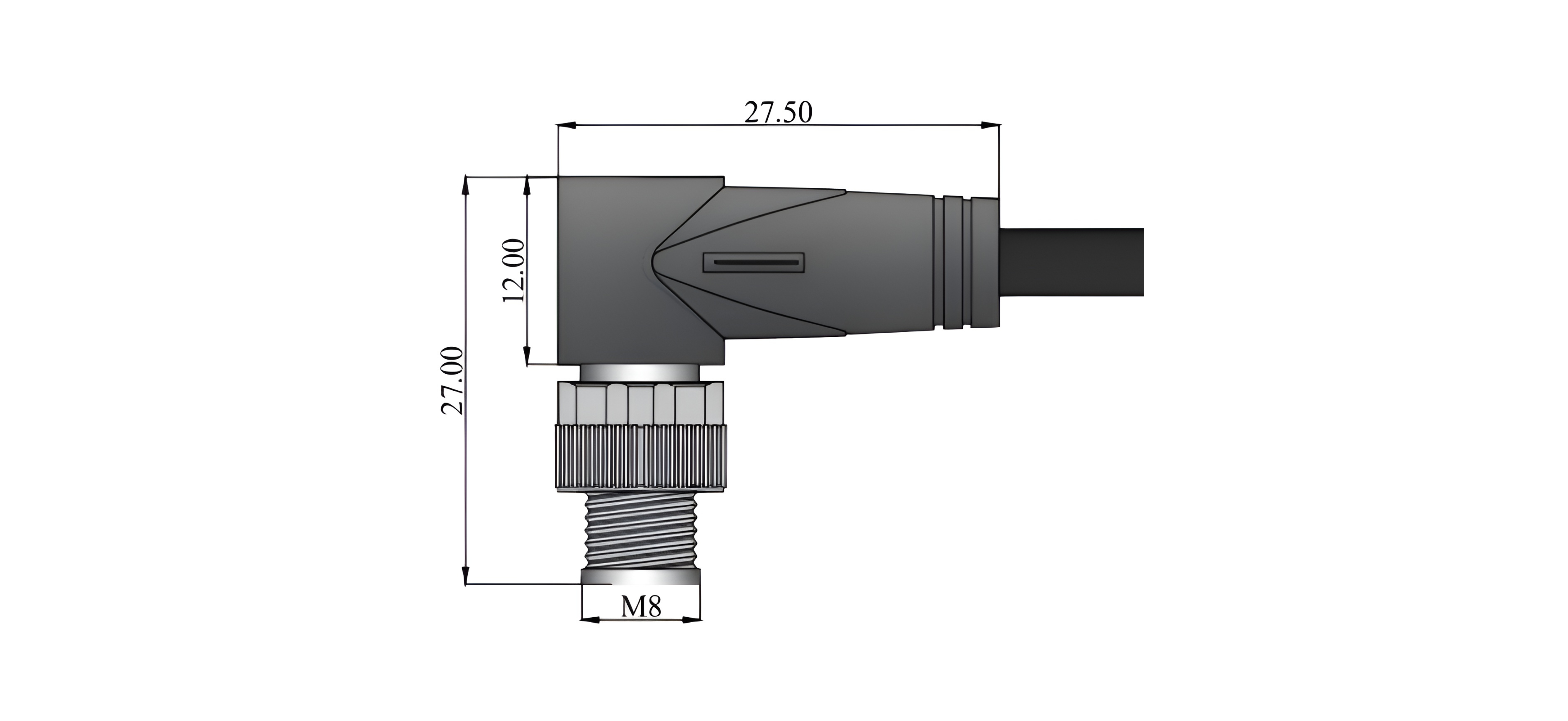

M8 Male Angled A code 4 pin Pvc Shielded 3x0.34 10 mtr Black
Downloads
Quick Specs
- Operating Voltage
- 300V AC/DC *
- Rated Current
- 4A
- Temperature Range
- -25.... +105°C* depending on cable
- Degree of Protection
- IP67,IP68
Technical Specifications
| Specification | Value |
|---|---|
| MPN | 248-97-144-334-1000 |
| Product Type | M8 Open End |
| Coupling | Threaded |
| Degree of Protection | IP67,IP68 |
| Wire Cross Section | 0.34 sqmm |
| Temperature Range | -25.... +105°C* depending on cable |
| Cable Diameter | 5.0±0.2mm |
| Color of Cable Mantle | Black |
| Material of Cable Mantle | PVC |
| Cable Length | 10 mtr |
| Material of Gland | Brass with Nickel Plating |
| Housing Material | TPU |
| Pin Contact | CuZn |
| Socket Contact | CuSn |
| Cable Drag Chain Suitable | Yes |
| Tightening Torque Maximum | 0.6 Nm |
| Bending Radius (Fixed) | 5 times of OD |
| Bending Radius (Repeated) | 10 times of OD |
| Contact Plating | Au |
| Operating Voltage | 300V AC/DC * |
| Rated Current | 4A |
| Halogen Free | Yes |
| Connector Type | M8 |
| Code | A |
| Stripping Force | 15-35 N |
